Operable Acoustic Room Divider Hotel Wooden Partition Wall
Specification:
Our operable or movable walls are the quality option for Maximilian the use of space within offices, educational establishments and hotels.
Using a system of individual interlocking panels that once in place give the same quality, aesthetics and sound reduction as a permanent partition wall they are the ideal solution for use in larger areas such as conference and meeting rooms where the space is used for a diverse range of activities.
Each panel within a movable wall system can be stored away completely when not in use to maximize the available floor space. Additionally there are numerous ways of stacking or configuring the individual acoustic wall panels to give full versatility on how the area is used.
Advantage:
Room to move, room to work or play. Public meeting or private function, assembly or seminar: Movable Acoustic Walls and Sliding Folding Partitions put all the options at your fingertips.
Gliding effortlessly along a concealed track suspended above the ceiling, our movable walls can provide all the acoustic and aesthetic qualities of a fixed wall, with the immeasurable advantage of maximum flexibility.
A variety of configurations and divisions can be achieved easily and rapidly. Once in place, spring loaded seals lock the panels into position.
The fully modular system allows for design on a project by project basis, taking account of all individual requirements. Installation is carried out by highly experienced engineers.
In essence, our movable walls can remove the barriers of your building's design, allowing you to make the most of your available space.
Feature:
High specification top hung system.
Exposed protective edge or concealed profile.
Individual panels suspended from top track.
Retractable seals that lock between track and floor.
Variety of stacking arrangements.
Pass door available.
Sound rating from Rw37 to 53 dB.
Acoustic details:
Our Top Hung acoustic operable walls were designed specifically with the office refurbishment sector in mind. With sound attentions available from 37dB RW to 53 dB RW, there is no acoustic issue between rooms that the Top Hung Operable Wall cannot cater for.
Sound reduction dB ratings are often quoted from laboratory test results which are misleading in respect of final performance values. They are merely useful for initial specification purposes. Independent on-site tests as carried out by partners are recommended as in-situ results will differ from laboratory test certification and are therefore the only true guide to achievable sound attenuation.

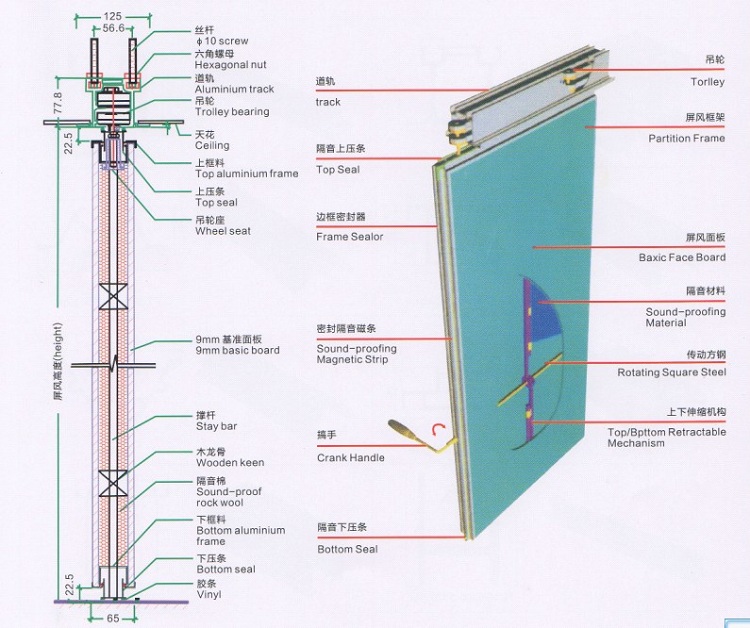

Technical Information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. |
Our service:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
