Exhibition Hall / Office Partition Walls Acoustic Folding Operable
How to select the suitable acoustic partition wall for your site?
We have 4 types of acoustic partition walls,65type,85type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,
65type-- Max height 3.5m, soundproof: 38dB to 43dB
85type- Max height:5.5m,Soundproof: 43dB to 53dB
100type--- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
What is lead time?
The lead time is 7 days to 10 days.
How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
Operation.

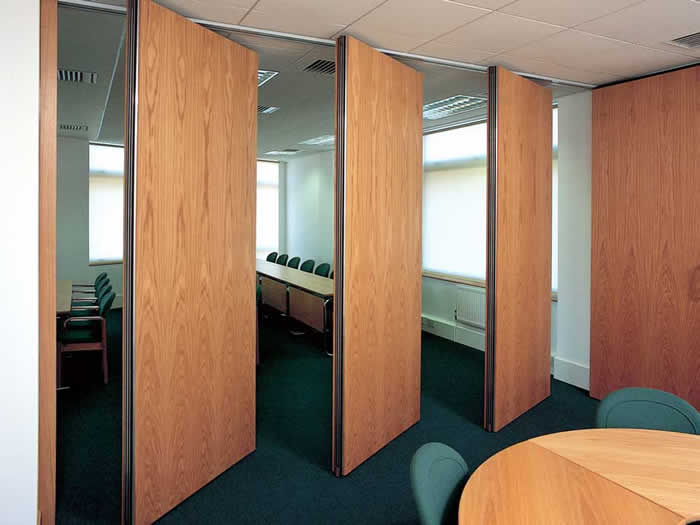

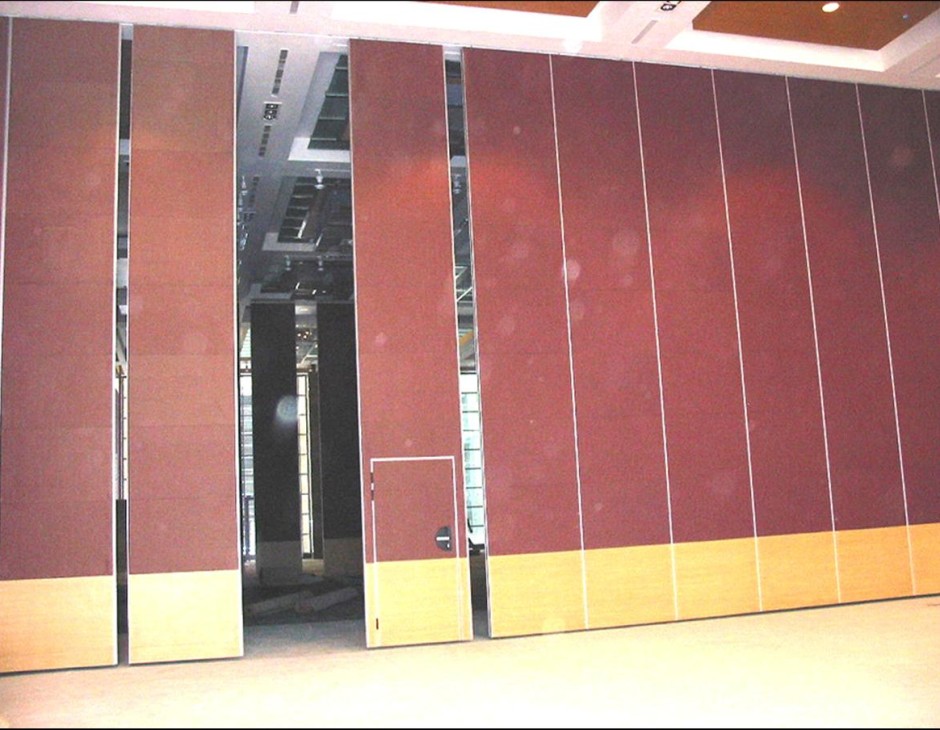

The continuously hinged panels are pulled from their parked position to ‘close’ (or extend) the wall and pushed back to the parked position to ‘open’ (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.
Standard Type
Acoustic partition walls system are 2-1/4” tongue-and-groove unitized panel system. Acoustic partition walls panels are 24” wide, precision laminated, and pre-finished with vinyl, fabric or other specified finish. Panels are manufactured at various heights up to 59’. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
Who we are?
The BUNGE Acoustic Partition Walls is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
The difference between partitions and partition walls
We usually say there are many kinds of partition walls:ceilings, topless, thick, thin, high, low, etc., which are widely used, and a wall in the partition wall is a wall as its name implies. , It is specially used for non-load-bearing indoor partitions and finished wall materials with specific technical indexes such as fire prevention, sound insulation, strength, and environmental protection.
The difference between high partition and acoustic partition wall
In terms of product characteristics, high partitions and high partitions are two types of products that are used in different locations. The use of high partitions can be used in various commercial environments. Usually, the planned areas are separated by a fixed The long-term independence between the separated space units is ensured. Therefore, the high partition wall is fixed with the sky, ground, and wall, and it must meet the requirements of fire prevention, sound insulation, strength, and environmental protection. The narrow use range of high partitions is mostly used in hotels. Or office space. A partition wall is usually a temporary partition of an independent space into one or more space units to meet temporary needs. Therefore, a high partition is often called a mobile high partition that is suspended and moved on a specified orbit, and of course there is a certain degree of fire protection. And soundproofing requirements.
The connection between high partition and movable partition wall
High partitions are not the same because of different regional differences. In China, high partitions are also known as high partitions, glass partitions, finished partitions, and high partitions, so we usually say that high partitions are to some extent It is a high partition.
