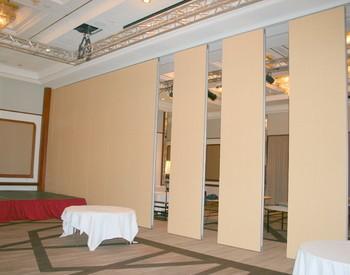

Melamine Finish Wood Partition Panels / Aluminum Room Dividers

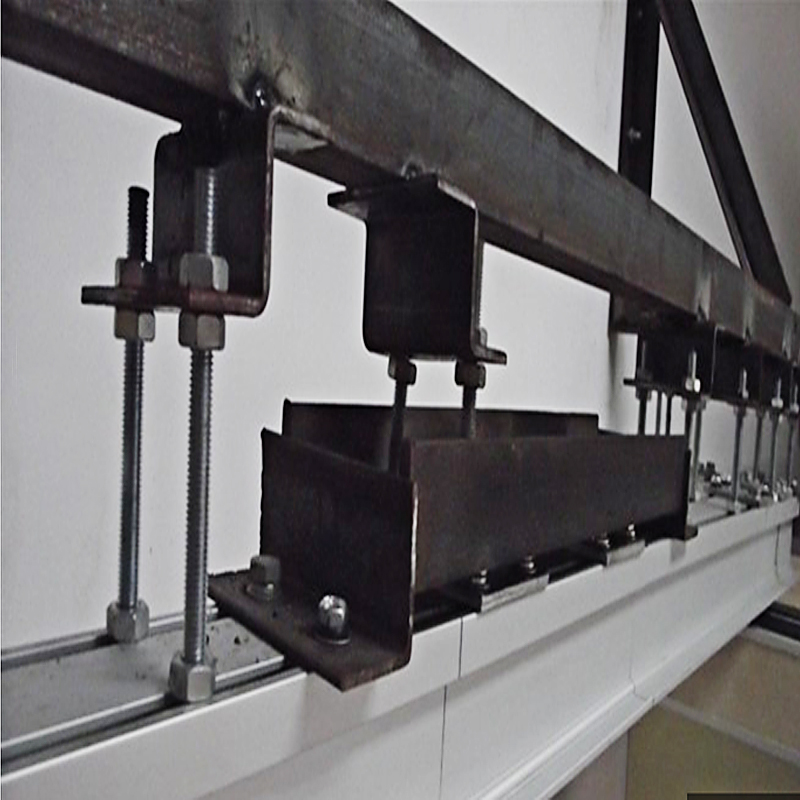

• The Aluminium Track systems are made of clear natural anodized 6063-T6 architectural grade aluminium alloy.
• Different options of track intersections available to suit specific design requirement.
• Options of single or dual carrier’s suspension to suit different stacking layout design and requirement.
• Each single suspension carrier has four vertical metal bearing wheels roll on the track. Each wheel has precision-ground 6002-2RS bearings, encased with POM, steel banded and reinforced. The double suspension carrier has two horizontal high grade polymer disks manoeuvre on straight or multi direction divert track layout.

There will be a 16-20 mm gap between the top of panels and the bottom of the head track when the wall panels are moved.

Similarly, the gap also exists between the bottom of panels and the floor.

By installing the retractable pressure seals on the top and bottom of panels, excellent sound insulation effect is achieved when the panels are positioned.

The pressure seals are operated by a dismountable handle enabling a 180° rotation to realize the extrusion and retraction. The overall sound insulation effect can be achieved via the extension sleeve on the last panel and the tight sealing of the top and bottom seals.

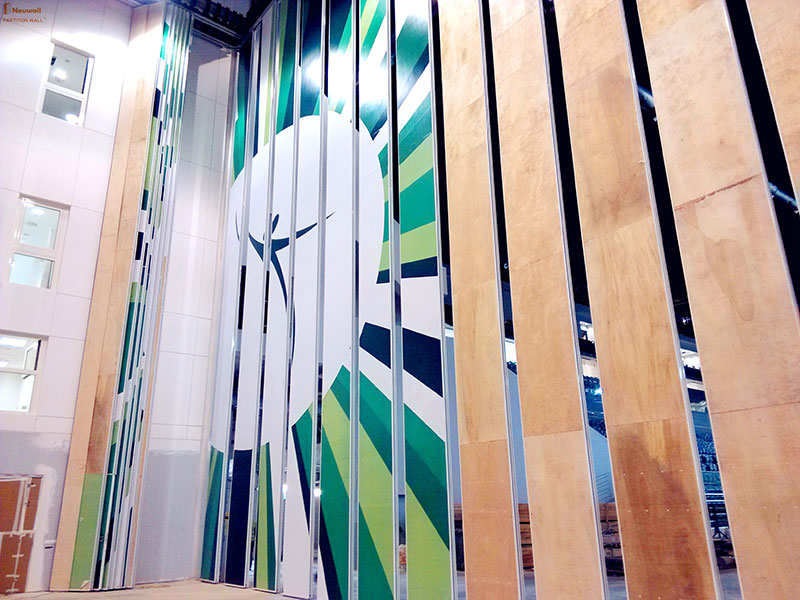

The wooden partition walls panel is designed in tongue-and-groove mode and its surface finish can be made of precise laminated board, pre-finished wood veneer, fabric or other materials specified by customers. The movable wooden partition wall is also equipped with vertical and horizontal external frame fabricated by extruded aluminum profiles. The retractable vinyl pressure seals installed on the top and bottom of panel can tightly seal the gaps between the wooden partition wall panel and the top and bottom tracks, helping to form a sealed and balanced wall which blocks the propagation of sound wave. The sound insulation effect can reach up to 35 to 58 dB.

What’s more, we design a simple lock-up configuration. The dismountable operating handle enabling 180°rotation controls the extrusion and retraction of retractable pressure seals.
