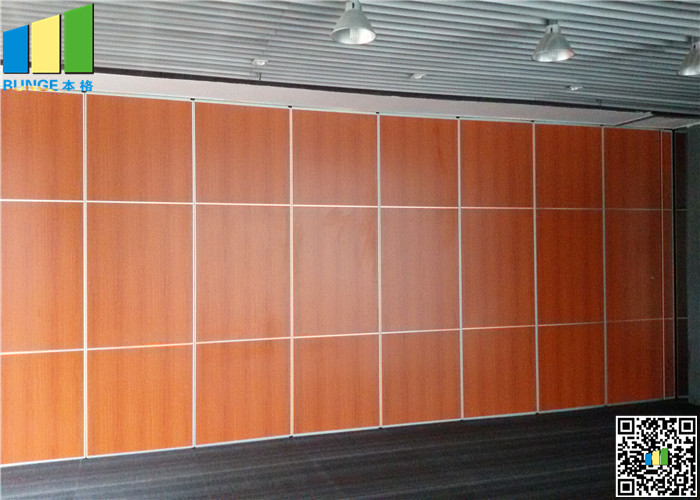

Acoustic Room Dividers MDF Melamine Acoustic Finish Partition Walls

Name: Acoustic Room Dividers MDF Melamine Acoustic Finish Partition Walls
Brand: EBUNGE
Price: 60 USD

Acoustic Room Dividers MDF Melamine Acoustic Finish Partition Walls Manufactures

Brand Name : EBUNGE

Model Number : Series 65 mm folding partition walls

Place of Origin : Guangzhou,China

MOQ : 10pcs

Price : 60-119 USD per square meter

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 square meters per month

Delivery Time : Shipped in 10 days after payment, based on the quantity.

Packaging Details : Carton package, MDF batten on four section sides ,foam board on both front face.

Product name : Folding partition walls

Material : Aluminium and mdf board

Height : Less then 4 m

Width : 500-1200 mm

Thickness : 65mm aluminum frame

Function : Sliding room divider

Finish : Melamine, fabric, leather, MDF bare finish

Warranty : Sliding partition walls warranty 3-5 years

Contact Now

Manufacturer acoustic room dividers MDF melamine acoustic finish partition walls

Description:

Our acoustic partition wall accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections. Sound proof partition walls are very popular now overall the world.
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.

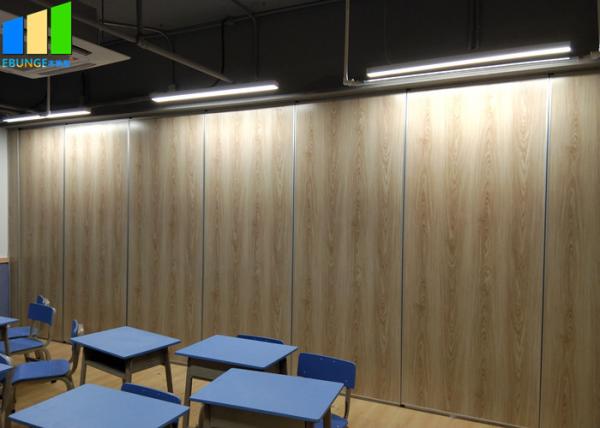

Acoustic Room Dividers MDF Melamine Acoustic Finish Partition Walls

Technical parameters:

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Acoustic Room Dividers MDF Melamine Acoustic Finish Partition Walls

Feature:

No floor rails: The acoustic room divider is top hung system without the need for a floor track

Stable and safe: Stable and reliable after the partition, easy to swing

Sound insulation: The operable wall has sound insulation effect, the maximum sound insulation up to 57DB, we can offer various levels of sound reduction

Insulation energy saving: Excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption

Efficient fire: The use of highly efficient fire prevention materials, fire performance is good

Retractable and flexible: Retractable top and bottom seals ensure effortless movement of panels, numerous panel stacking options for complete flexibility,only a person can complete the whole process of cutting off.

Usage:

(1)Size of wall: all movable partition panels should be installed in accordance with the manufacturers recommendations.

(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.

(3)Install the acoustic panels: the installation of acoustic partitions should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.

(4)Fix on keel:Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
