Brand Name : EBUNGE
Model Number : Series 65 mm acoustic room dividers
Place of Origin : Guangzhou,China
MOQ : 10pcs
Price : 60-119 USD per square meter
Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability : 5000 square meters per month
Delivery Time : Shipped in 10 days after payment, based on the quantity.
Packaging Details : Carton package, MDF batten on four section sides ,foam board on both front face.
Product name : Acoustic room dividers
Material : Aluminium and mdf board
Height : Less then 4 m
Width : 500-1200 mm
Thickness : 65mm aluminum frame
Function : Soundproof room divider
Finish : Melamine, fabric, leather, MDF bare finish
Warranty : Acoustic room dividers warranty 3-5 years
Wooden acoustic room dividers folding classroom partition sliding door movable partition wall
Bunge movable acoustic room dividers partition type as follow:
1. Ordinary Series:65MM,85MM;
2. High Sound Proof Series:85MM,100MM;
3. Super High Series:Steel Track System
4. Glass Series:65MM & 85MM Aluminum Frame
Technical parameters:
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 80mm / 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Specification:
Our high-quality range of sliding folding partitions, moveable wall systems and room dividers allow businesses to change their office layouts quickly and easily. All of our products are extremely flexible and highly versatile so they can be suited to different environments.
Using fordable partitions and moving wall systems is the most flexible way to organize office or conference space quickly and efficiently. We work with local government, schools and education, offices, conference centers, churches and hotels, as well as consumers.
Our lightweight designs are manufactured to the highest acoustic specifications and offer excellent soundproofing. With a variety of styles, colors and designs, our folding partitions can be subtly blended into your existing and surroundings.
Products are manufactured in our factory base and undergo rigorous testing for quality, acoustic and fire performance to European standards.
Feature:
Top hung system without track at floor level.
Retractable acoustic seals at top and base operated either by quick release handle.
Single or two point suspension for centre or remote parking options.
Variable track arrangements.
Junction modules meet requirements for corner, three or four way abutments.
Panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing surface or paint.
Optional integral pass doors, glazed modules and vision panels.
![]() |

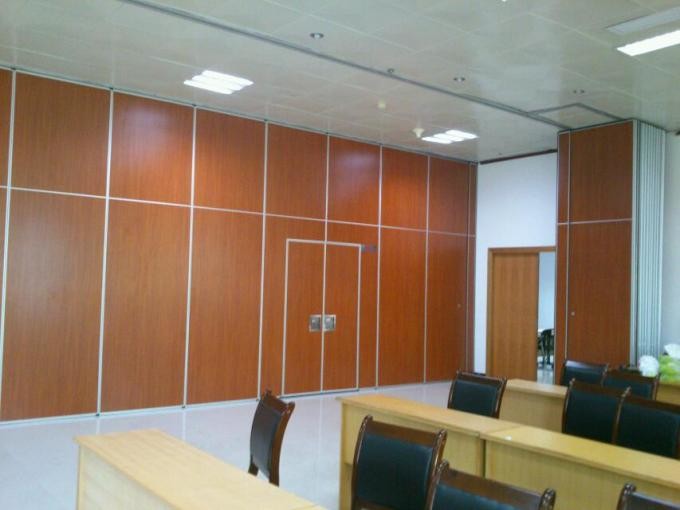

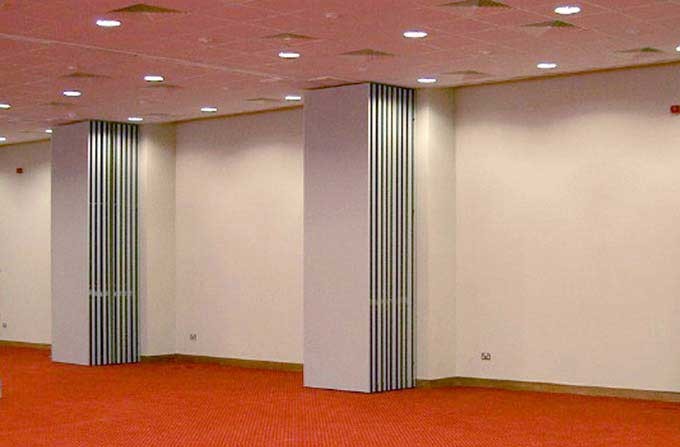

Wooden Acoustic Room Dividers Folding Classroom Partition Sliding Door Movable Partition Wall Images |
