Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers

Name: Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers
Brand: BUNGE
Price: 75 USD

Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers Manufactures

Brand Name : BUNGE

Model Number : 85 mm ceiling room dividers

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 squaremeters

Price : 75 / 110 dollars per square meter

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 squaremeters per month

Delivery Time : Shipped in 10 days after payment, based on the quantity

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

Interior : Interior

Panel width : 500 mm--1220 mm

Application : Function room,hotel

Finishing : Melamine,fabric,leather

Material : MDF+Aluminum

Product name : Movable partition walls

Service : OEM ODM

Style : Sliding

Color : Color Selective (Customized)

Thickness : 85 mm(3 1/4 inch)

Contact Now

Sound Proof Movable Ceiling Room Dividers

Features & Benefits

Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Extensive range of surface finishes available

Series	Thickness (mm)	Applied height (m)	Width of Intermediate panel (m)	Acoustical reduction coefficient (db)	Hanging weight
#65	65	2.0~4.5	0.6~1.2	35	30kg/m2
#85	85	3.0~6.8	0.6~1.2	45	35kg/m2
#100	100	5.0~8.0	0.6~1.2	53	45kg/m2
#120	120	7.0~13.0	0.6~1.2	65	65kg/m2

Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers

Contruction
1.Track installation:Suspension fixed way is at the top of the partition board install the hanging wheel, and connected to the track suspension. The track and hanging wheel should be chosen according to the partition size and load weight.
2.Ceiling room divider installation: according to the design drawing, draw on each partition panel to mark the line wheel, fix the wheel with screws on the partition board top; Then the panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
3.Debugging: ceiling room divider need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work

Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers

Bunge Operable Wall Systems-Technical Information

Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or Double Roller
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers

Foldable Type movable ceiling room dividers :
<A> Galvanized sheet base board: soundinsulation coefficient RW=36dB, the density is 30kg/m2;
<B>MDF or ply wood base board: sound insulation coefficient RW=32dB, the density is 24kg/m2;
<C>Magnesium board base board: sound insulation coefficient RW=26dB, the density is 25kg/m2;
Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers

Product Tags:

conference room dividers

banquet hall room dividers

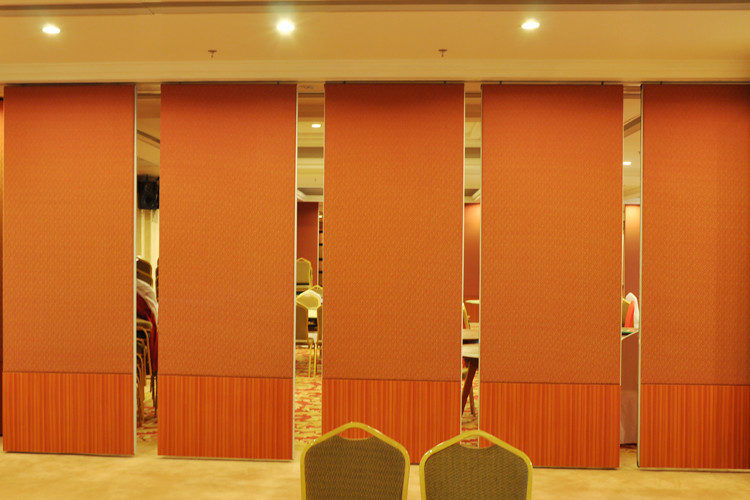

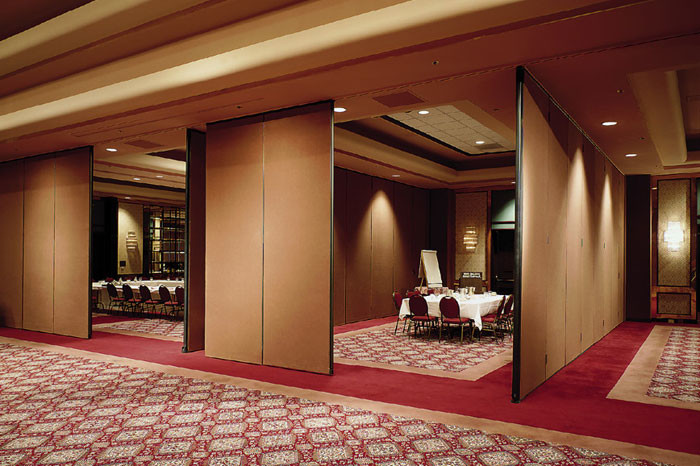

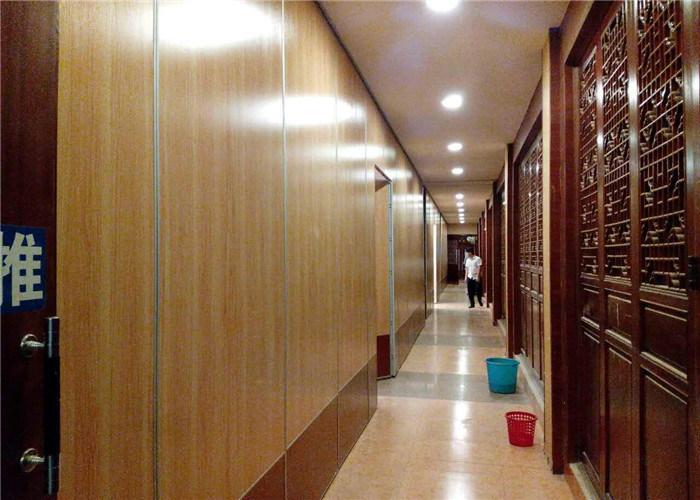

Auditorium Sliding Operable Partition Function Hall Sound Proof Movable Ceiling Room Dividers Images
