4m Height Acoustic Wall Panel / Movable Partition Walls For Meeting Room

Name: 4m Height Acoustic Wall Panel Movable Partition Walls For Meeting Room
Brand: BUNGE
Price: 85 USD

4m Height Acoustic Wall Panel / Movable Partition Walls For Meeting Room Manufactures

Brand Name : BUNGE

Model Number : Series 65 mm movable partition wall

Certification : ISO9001

Place of Origin : China,Guangzhou

MOQ : 10 square meters

Price : 85 / 120 dollar per square meter

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 square meters per month

Delivery Time : Shipped in 10 days after payment, based on the quantity.

Packaging Details : Carton package, MDF batten on four section sides ,foam board on both front face.

Thickness : 65 mm

Height : 4 m

Width : 500/1200 mm

Product name : Movable partition wall

Material : Melamine,wooden

Application : Conference room,function room,office

Certificate : ISO9001

Service : OEM Service

Contact Now

High quality acoustic wall panel movable partition wall for meeting room

Specification:
Our movable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .

4m Height Acoustic Wall Panel / Movable Partition Walls For Meeting Room

Technical information:

Series	BG65	BG85	BG100&BG125
Panel suspension	Top hung only	Top hung only	Top hung only
Panel thickness	65 mm	85 mm	100 mm
Max height	4000 mm	6000 mm	18000 mm
Panel width	500-1200 mm	500-1200 mm	500-1200 mm
Face material	9 mm	9 mm	12 mm
Pass doors	Single door or Double door
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Usage:

(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.

(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.

(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.

(4)Fix on keel:

Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.

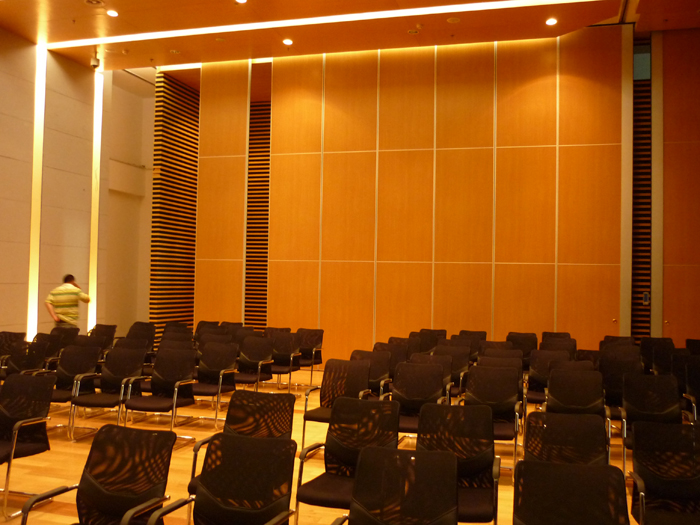

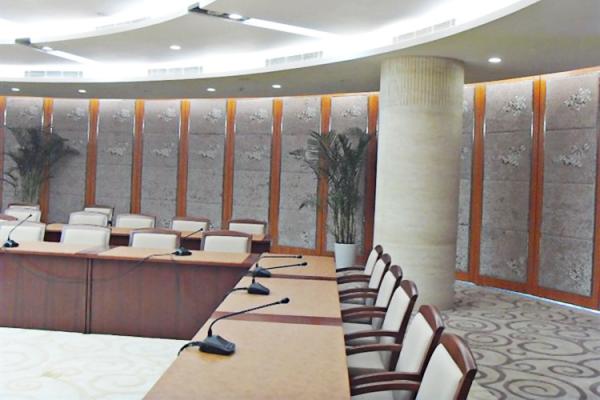

Case show:

4m Height Acoustic Wall Panel / Movable Partition Walls For Meeting Room

Feature:
Environmental protection and light material.
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.

4m Height Acoustic Wall Panel / Movable Partition Walls For Meeting Room

Our service:

Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
