Soundproofing Floor to Ceiling Acoustic Folding Partition System Rolling Room Dividers
Specification:
1) Easy element adjustment after installation.
2) Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
3) Surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.
4) Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminium track.
Bunge Operable Wall Systems-Technical Information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
We Offer:
A full professional design service
Survey and installation guide
Using top quality materials and components
A fully experienced work team
Maintenance contracts to ensure your valuable asset remains in full work order.
About the products:
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.
Product Tags:
|
|

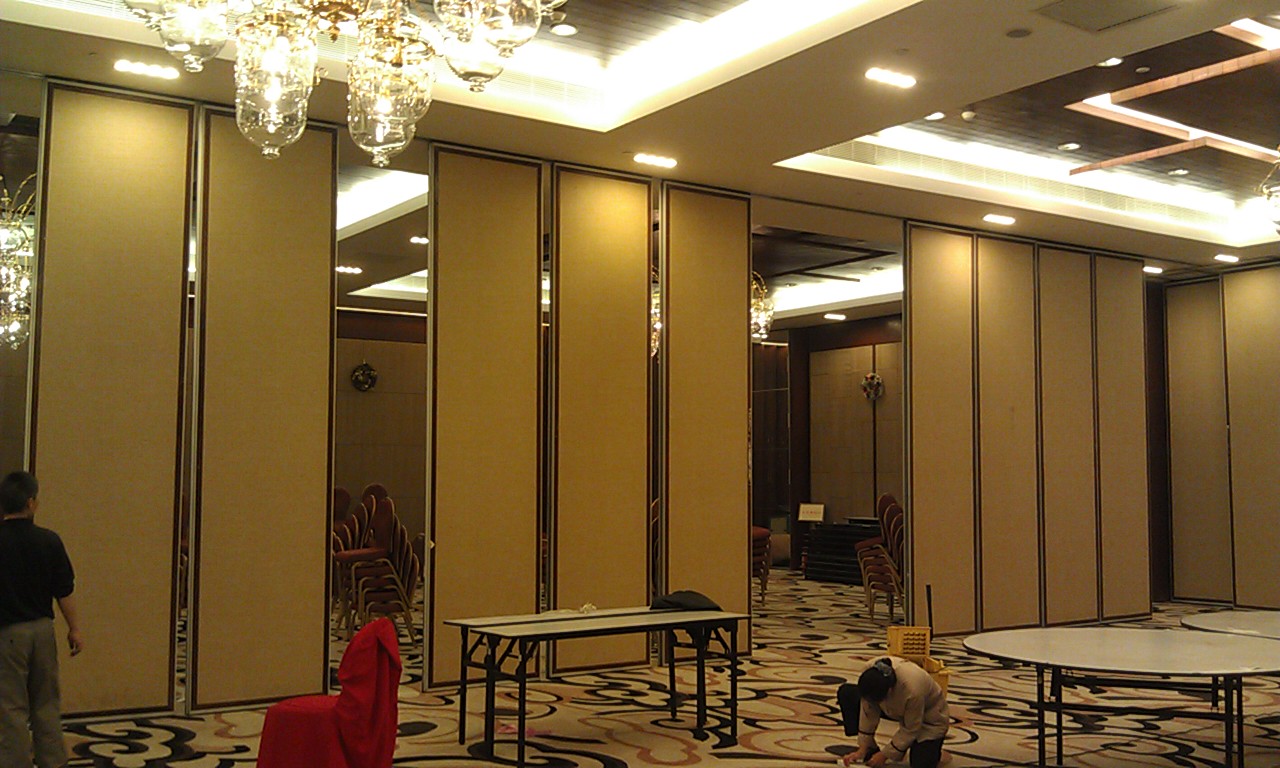

Soundproofing Acoustic Folding Partition System Rolling Room Dividers Images
|
