Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant

Name: Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant
Brand: BANGE
Price: 1 USD

Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant Manufactures

Brand Name : BANGE

Model Number : 85 mm movable partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 square meters

Price : US Dollars 82 - 122 per square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 square meters per month

Delivery Time : 15-20 days

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

Application : Hotel,banquet hall

Style : Sliding

Position : Interior

Material : MDF + Aluminum

Panel width : 500 mm--1220 mm

Feature : Sound proofing

Height : 6 meters

System : Hanging system

Product name : Movable partition walls

Thickness : 85 mm(3 1/4 inch)

Contact Now

Interior Design Wooden Movable Sound Proof Partition walls

BUNGE Movable Partition Walls Details

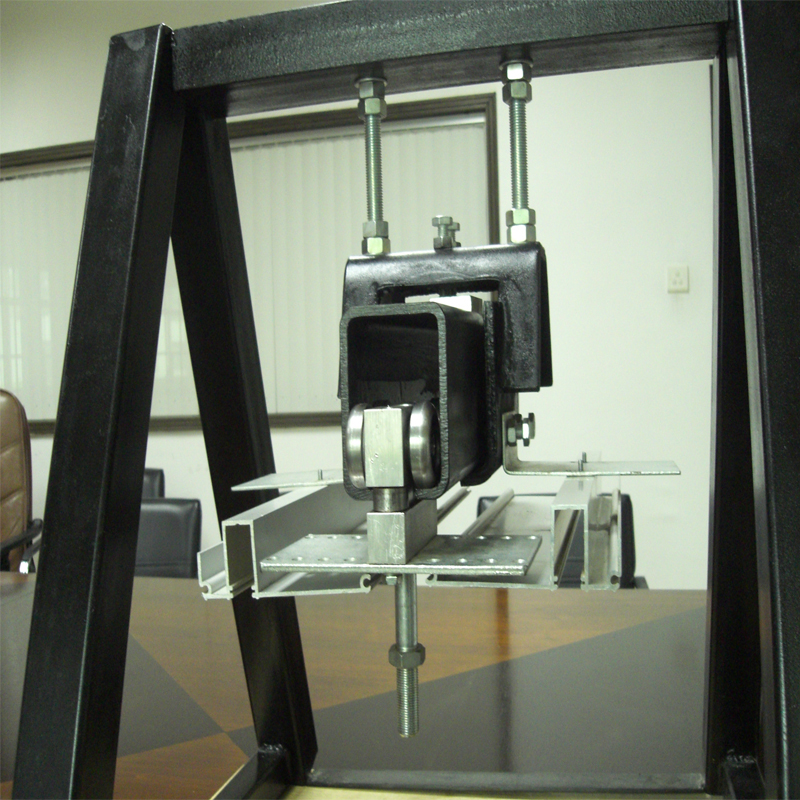

Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or Double Roller
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant

Panels:
The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.

Basic Panels shall be equal in module.
Approx. Weight kg/ square metre : 32 kg
Maximum height : 6000mm.

Panel Surface Finish : The panel surface will be as per the clients requirement finished either in Sliwal factory – China or by others . The popular finish such as :laminate,veneer,melamine,fabric etc.

Rectractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminium box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 180 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant

Seals : vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.

Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminium profiles to enhance acoustic performance of the wall.

Stacking : The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant

STC Privacy Afforded

• 25 Normal speech easily understood
• 30 Normal speech audible, but unintelligible
• 35 Loud speech understood
• 40 Loud speech audible, but unintelligible
• 45 Loud speech barely audible
• 50 Shouting barely audible
• 55 Shouting not audible

The intended use of the building or room versus the use of the surrounding areas will, in part, determine the amount of sound control you need. For example, a folding wall dividing a high school science classroom from a student lab doesn’t need to have as good a barrier as an movable partition between meeting rooms in a hotel.

Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant

Product Tags:

movable partitions systems

acoustic movable walls

Acoustic Sliding Sound Proof Movable Partition Walls For Restaurant Images
