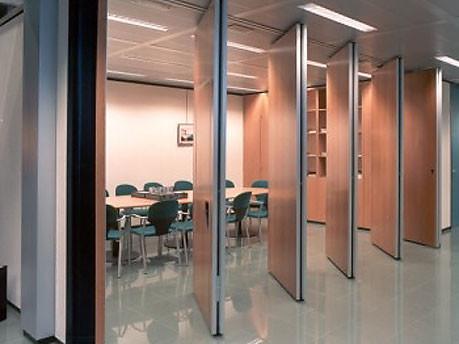

Operable Wall Partitions Sliding Sound Proofing Movable Acoustic Room Dividers
Acoustic Room Dividers Specification:
The acoustic room dividers can create multipurpose areas, with fast conversion of large spaces into lots of small ones and vice versa.
These acoustic room dividers are made from independent elements that can be easily moved and which slide on tracks fixed just to the ceiling so that when they are “put away”, there are no unsightly and hazardous tracks on the floor.
Each module sits perfectly flush against the ceiling and floor, thanks to a telescopic system that guarantees sound insulation and stability.
SURFACE TREATMENT
The standard colour for the track profile of the folding wall and the jamb profiles is white (RAL 9010) and the panels edge profiles are natural anodized.
There is a wide variety of panel surface treatments, from which a suitable one can be chosen:
· White melamine (standard);
· Coloured melamine (RAL and NCS catalogues);
· Decorative melamine
· Natural veneer
· Special solutions (laminate, magnet board, school blackboard, etc.).
As a special solution it is possible to install a glass opening in the center of the panel. The opening can cover the whole panel, the bottom or the top.
The maximum measurement of the glass is 150 mm in from the sides of the panel and 300 mm in from the top and bottom of the panel.
Acoustic Room Dividers --- 65,85,100,125 mm
BUNGE Acoustic Room Dividers provide a wide range of aesthetic, operational, and performance options and are the perfect solution to meet demanding space flexibility requirements. With over 10 years of acoyustic room dividers expertise, LPA has been the exclusive installing distributor of BUNGE acoustic room dividers. Our designers can assist you early in your design with layout, structural support and storage pocket requirements, finish options, reliable budgets, and the myriad of other details required to make each application a success. Highlights include:
- Acousti-Seal and Encore product lines
- Single, Paired, and continuously hinged panel configurations
- Highly customizable finishes including wood veneers, rigidized metals, plastic laminates and more
- Flexible storage configurations
- Top hung and floor supported systems
- Manual and motor-operated systems
- Track systems stocked for quick-turn tenant improvement projects
- Structural support systems available
- In-house factory-certified installers and service techs
STRUCTURE
The BUNGE Acoustic room dividers structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 82 mm and depending on the insulation material ensures a soundproof resistance of 32-53dB (decibels).
When the acoustic room divider is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by ±18 mm. The carriages are installed on every second wall panel and are located at the center of the panel. Because the acoustic room dividers wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc.).
In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by ±18 mm.
